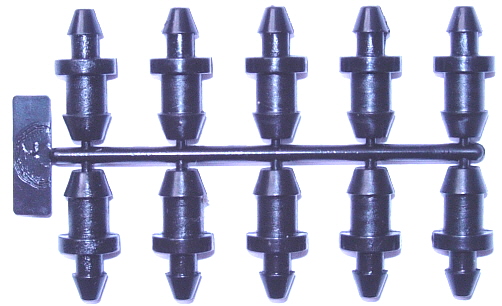

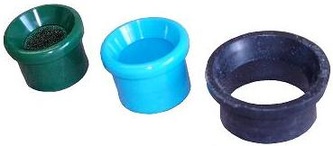

Olson and Rain Bird Bug Caps
|
1/8" Drip Fittings Barb or Threaded 10/32" Fitting 1/4" Drip Fittings
NETAFIM ABOVE NOT SHOWN 17 MM TECH LINE 100' / 250' 1 GPH 12" SPACING, AND FLUSH VALVE.

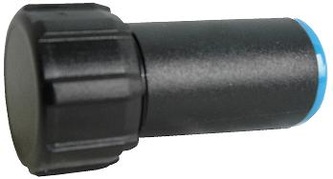

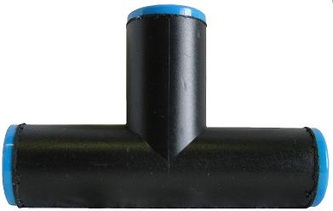

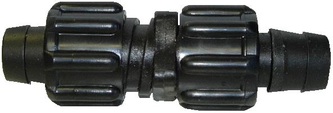

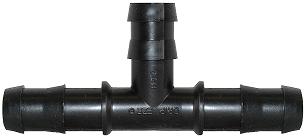

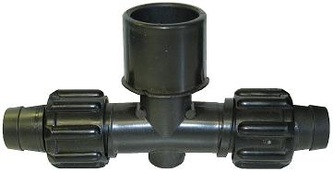

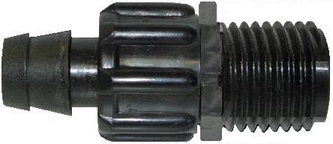

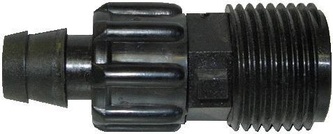

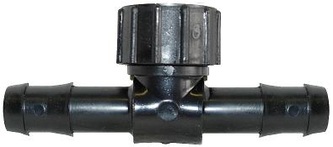

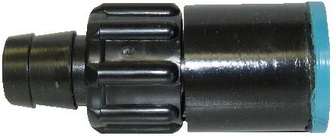

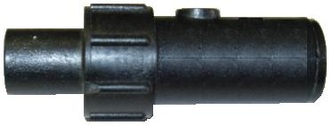

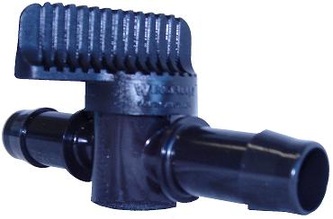

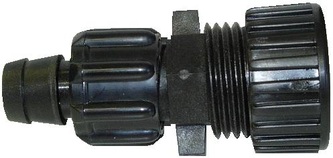

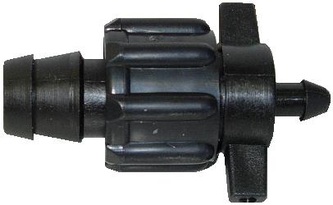

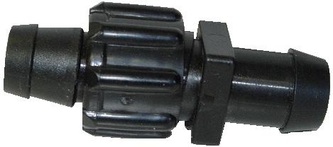

Toro Aqua Trax Tape Fittings
Aqua Trax available in 8 mil 6", 8" or 12" Spacing. Flows .50 gpm per 100' @ 8 psi
Aqua Trax available in 8 mil 6", 8" or 12" Spacing. Flows .50 gpm per 100' @ 8 psi
1. 1/4" V-Stake 2. 1/4" Riser Suppoet Stake 3. 1/4" Ojet Spike Stake 4. 10/32" Riser Stake 5. 3/8" Riser Stake 6. 1/2" Tubing Stake 7. 1/8" Tubing Stake

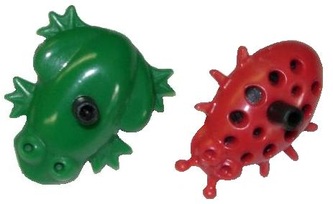

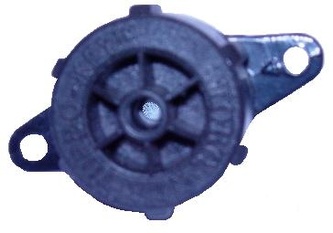

#1 Dig Emmiters 1/2 gph , 1 gph, 2 gph #2 Locking cap Emmiter non compensating 1 gph, 2 gph, 4 gph #3 Lady Bug or Frog 1 gph #4 Netafim Compensating .5 gph, 1 gph, 2 gph #5 Toro Turbo Ddripper 1/2 Gph, 1 gph #6 Vortex Sprayer 1/2 gph, 1 gph, 2 gph #7 Plant Propagation Sprayer 7 gph #8 Toro Foggers 2 gph, 2.9 gph, 3.7 gph
BLACK 160 DEG HIGH FLOW @ 20 PSI 15.0 GPH USE FOR 15-20 GAL POT OR 24"-36" NURSERY BOX
DARK GREEN 160 DEG MEDIUM FLOW @ 20 PSI 11.4 GPH USE FOR 5-15 GAL POT OR 8"-10" FLOWER POT
LT. GREEN 160 DEG LOW FLOW @ 20 PSI 6.6 GPH USE FOR 2-7 GAL POT OR 6"-10" FLOWER POT
ORANGE 160 DEG MINI FLOW @ 20 PSI 4.2 GPH USE FOR 1-3 GAL POT OR 6" - 8" FLOWER POT
BROWN 90 DEG MINI FLOW @ 20 PSI 6.6 GPH USE FOR 2-7 GAL POT OR 6" - 10" FLOWER POT
DARK GREEN 160 DEG MEDIUM FLOW @ 20 PSI 11.4 GPH USE FOR 5-15 GAL POT OR 8"-10" FLOWER POT
LT. GREEN 160 DEG LOW FLOW @ 20 PSI 6.6 GPH USE FOR 2-7 GAL POT OR 6"-10" FLOWER POT
ORANGE 160 DEG MINI FLOW @ 20 PSI 4.2 GPH USE FOR 1-3 GAL POT OR 6" - 8" FLOWER POT
BROWN 90 DEG MINI FLOW @ 20 PSI 6.6 GPH USE FOR 2-7 GAL POT OR 6" - 10" FLOWER POT

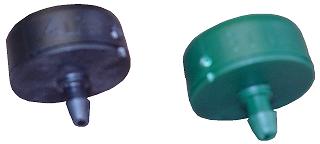

Rain Bird Emitters
1/2 gph Blue non compensating
Compensating 1 gph Black, 2 gph Red, 5 gph Tan, 7 goh Violet, 10 gph Olive, 12 gph Brown, 18 gph White, 24 gph Orange
1/2 gph Blue non compensating
Compensating 1 gph Black, 2 gph Red, 5 gph Tan, 7 goh Violet, 10 gph Olive, 12 gph Brown, 18 gph White, 24 gph Orange

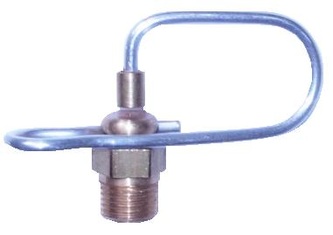

Challenger Micro Sprinkler 3/8" mpt By removing the spinner you can adapt to a nursery sprayer
White @ 20 psi 14.5 gph - 23' diameter Grey @ 20 psi 38.0 gph - 33' diameter
Green @ 20 psi 22.5 gph - 28' diameter Yellow @ 20 psi 48.0 gph - 36' diameter
Blue @ 20 psi 31.0 gph - 31' diameter Red @ 20 psi 61.0 gph - 38' diameter
White @ 20 psi 14.5 gph - 23' diameter Grey @ 20 psi 38.0 gph - 33' diameter
Green @ 20 psi 22.5 gph - 28' diameter Yellow @ 20 psi 48.0 gph - 36' diameter
Blue @ 20 psi 31.0 gph - 31' diameter Red @ 20 psi 61.0 gph - 38' diameter
180 deg Shrubbler, Barbed or on a stake with a coupling Adjustable 0-10 gph
|
360 deg Shrubbler, Barbed or on a stake with coupling Adjustable 0-10 gph
|
360 Sprayer, Barbed or on a stake with a coupling Adjustable 0-19 gph
|
360 deg Bubbler, Barbed or on a stake with coupling Adjustable 0-35 gph
|
